Single and Double Carport Configurations for Newcastle Homes
The most common decision you’ll face is single versus double — and it comes down to your driveway layout, block width, and how many vehicles you need to cover.

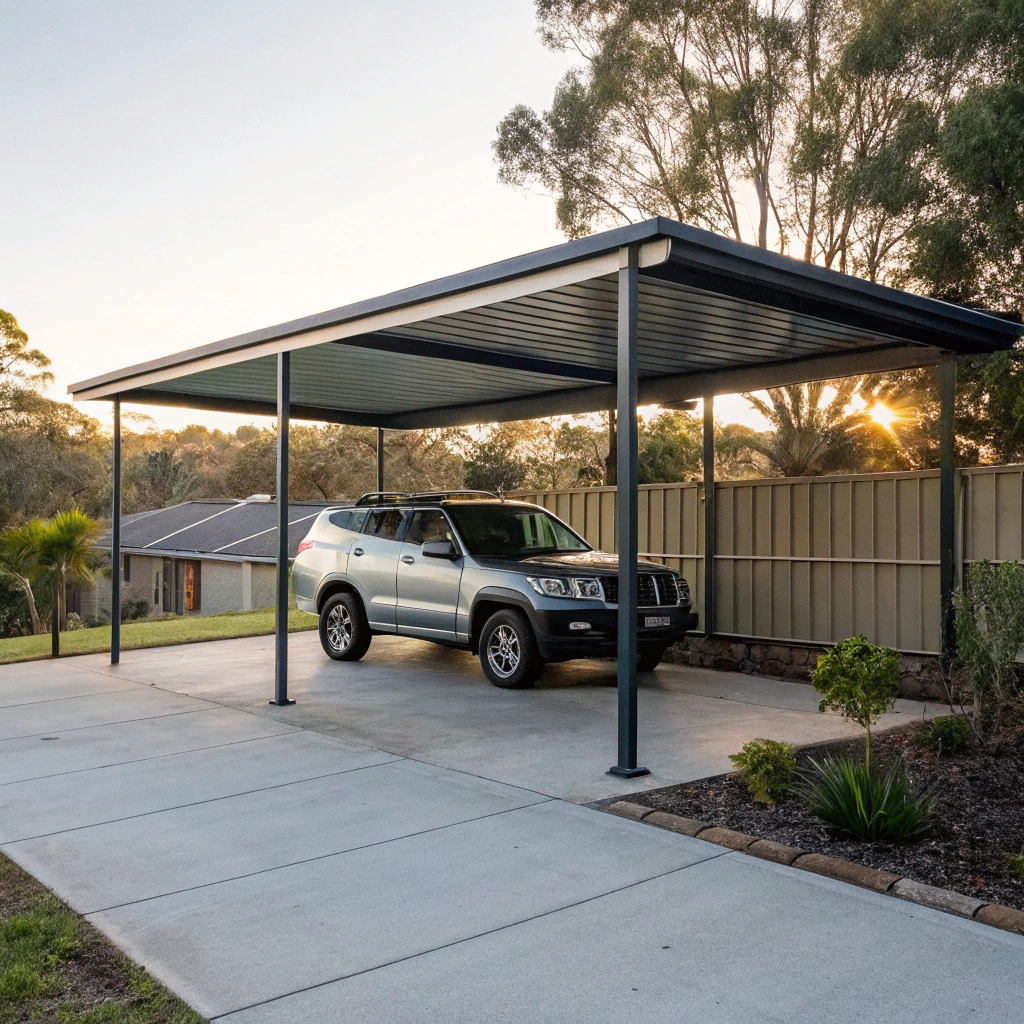

Single carports suit most standard residential lots. They’re compact, cost-effective, and can usually be positioned alongside an existing driveway without requiring major earthworks. A standard single spans around 3.2–3.6 metres wide.

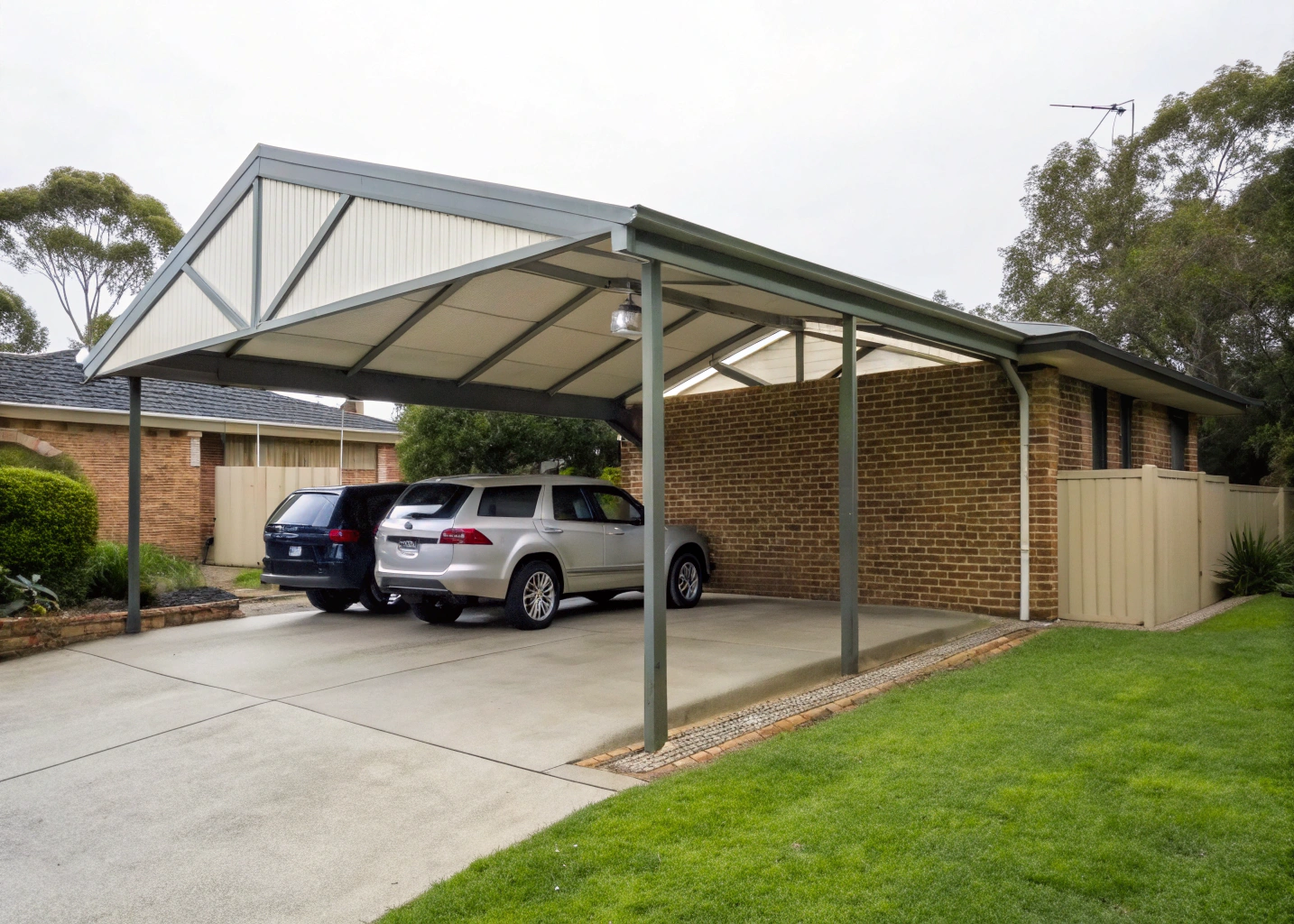

Double carports are increasingly popular across Newcastle’s outer suburbs — Fletcher, Chisholm, Rutherford — where blocks are larger and two-car households are the norm. A standard double spans 5.4–6.0 metres, giving clearance for two sedans or an SUV alongside a smaller vehicle.
Height clearance matters if you’re parking a 4WD, van, or boat trailer. We can design to a custom height — typically 2.4–2.7 metres to the lowest structural member — to suit larger vehicles common across Newcastle’s semi-rural fringe.
Carport Roof Styles — Flat, Pitched, and Gable Profiles
| Roof Profile | Best Suited To | Key Benefit |
|---|---|---|
| Flat/skillion | Modern homes, tight side setbacks | Clean lines, lower overall height |
| Gable (pitched) | Federation and brick veneer homes | Matches roofline, better stormwater clearance |
| Hipped | Larger freestanding carports | Four-way drainage, strong wind performance |
| Skillion lean-to | Wall-attached designs | Integrates cleanly with existing structure |
Matching your carport roof profile to your home’s existing roofline is one of the most important aesthetic decisions in the build. A gable carport on a federation-era home in Hamilton looks intentional and considered. The same structure on a modern brick veneer in Chisholm can look out of place. We walk through roof profile options during the quoting process and carry examples of each finish type installed across Newcastle suburbs so you can compare before committing.
Complying Development and Council Approval for Carports in Newcastle
Whether your carport needs a DA (Development Application) or qualifies as Complying Development (CDC) is one of the first things we work through with you — because it directly affects your timeline and cost.
Under the NSW Complying Development pathway, most residential carports can be approved without a full DA, provided they meet specific criteria:
- Front boundary setback: Carports must not be closer to the front boundary than the building line of the existing dwelling, or within 1 metre — whichever is the lesser. This is the most common sticking point on inner-suburb Newcastle blocks where the house sits close to the street.
- Side boundary setback: Minimum 0.9 metres from side boundaries for most residential zones.
- Height: Maximum 3.8 metres above existing ground level for Complying Development.
- Roof area: Combined roof area of all outbuildings (shed, pergola, carport) must not exceed 50% of the dwelling’s footprint.
Where a CDC isn’t achievable — due to setback constraints or heritage overlays — we prepare the documentation needed for a DA through Newcastle City Council or Lake Macquarie City Council. We handle this process regularly and can advise on likely timeframes from the first consult.
Site Requirements — Slabs, Footings, Drainage, and Driveways
A carport build doesn’t start with the frame — it starts with what’s underneath it.
Concrete slab or pad footings are required under all structural posts. For most standard residential carports, we pour pad footings at each post location. A full concrete slab is an option if you want a clean, sealed floor surface — common for carports that double as storage or workshop space.

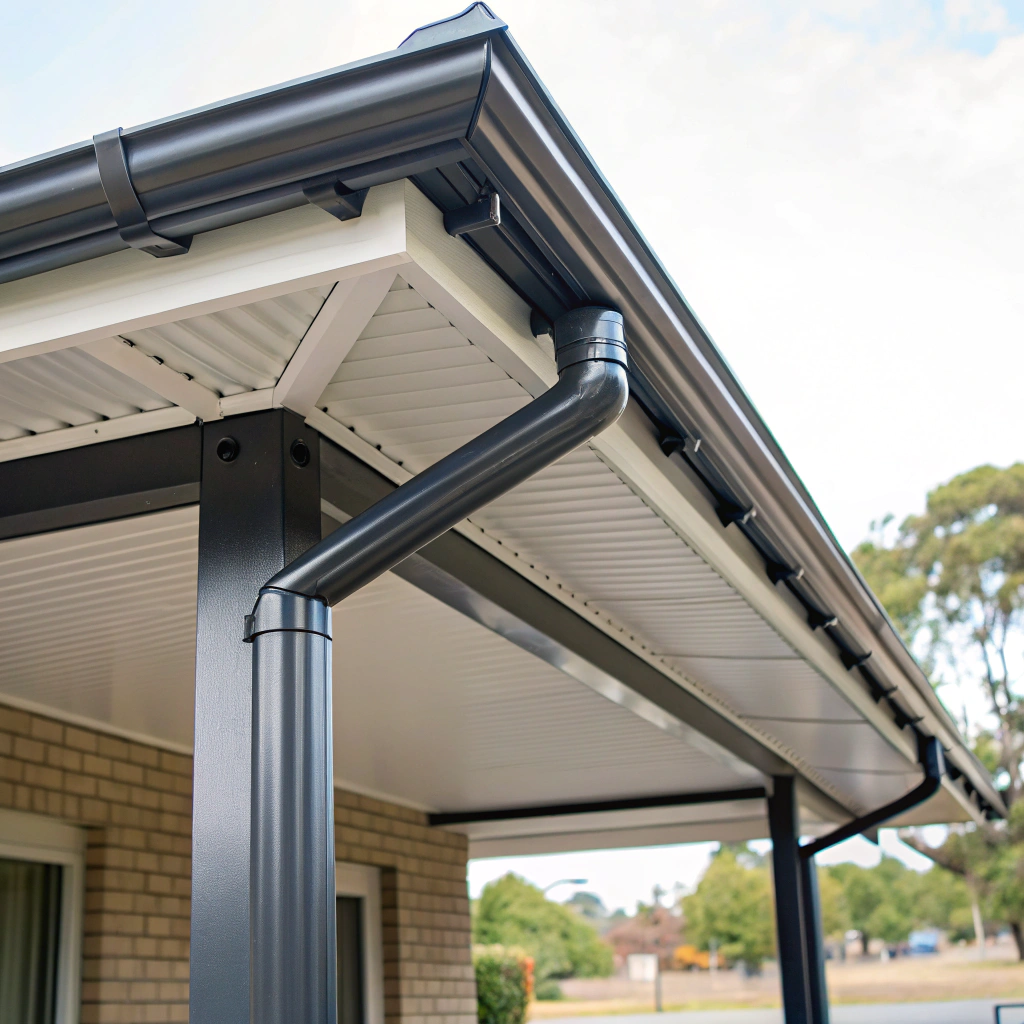

Stormwater drainage must be managed from the roof area. We design guttering and downpipe runs that connect to your existing stormwater system or, where that’s not practical, discharge to a compliant absorption point. Newcastle City Council and Lake Macquarie Council both require stormwater to be managed to the boundary — not directed to neighbouring properties.
Driveway integration is straightforward on most established lots — the carport positions over or beside an existing concrete or asphalt driveway. Where the driveway needs extending, we can coordinate concreting as part of the same build scope.
Freestanding vs. Wall-Attached Carports — Which Suits Your Property?
The choice between freestanding and wall-attached comes down to your block layout, how close the carport needs to sit to your home, and whether you want a direct covered walkway to your entry or laundry.

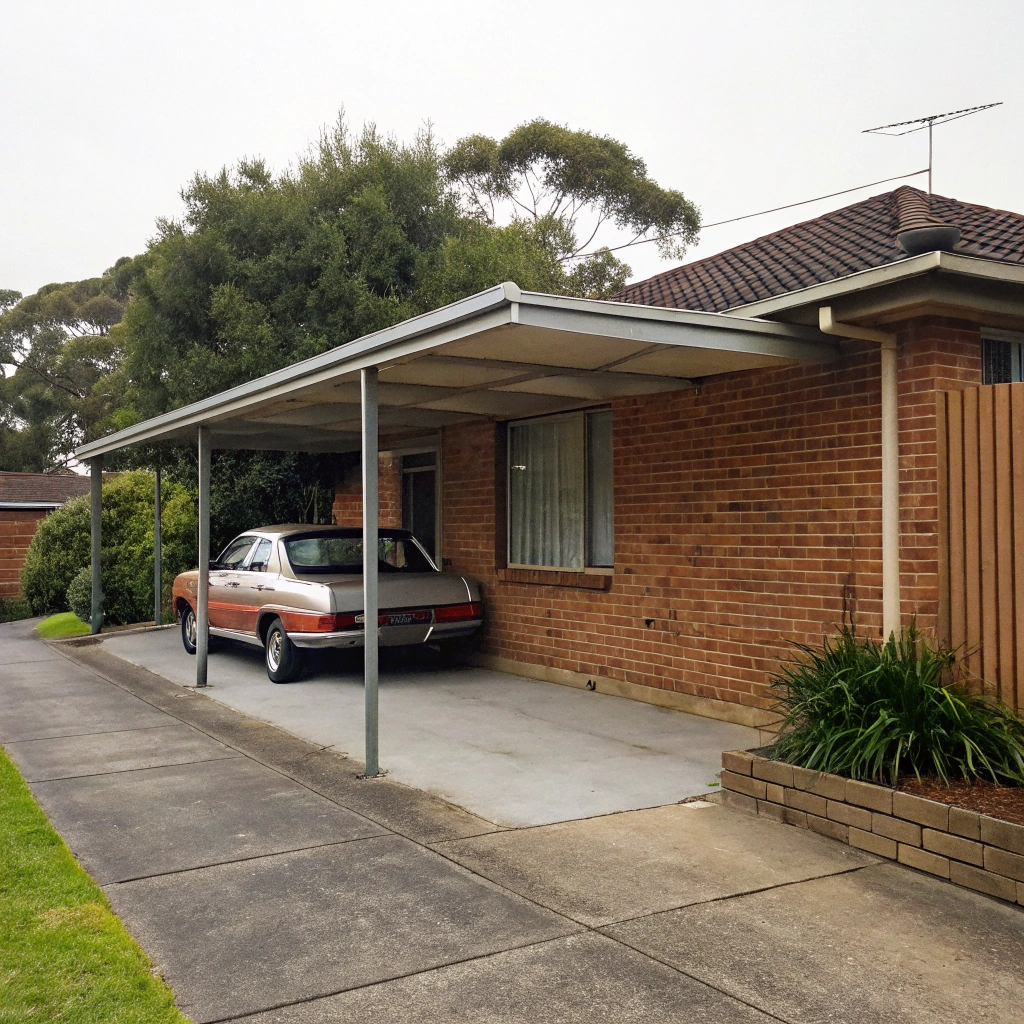

Wall-attached carports (lean-to style) fix directly to your home’s fascia or wall. They’re efficient on narrow blocks where a freestanding structure would eat into usable yard space, and they create a natural covered transition between your vehicle and your front or side entry. They do require wall penetrations, which we waterproof and flash correctly to prevent water ingress.
Freestanding carports stand independently and can be positioned anywhere on the block — beside the home, in a rear yard, or set back from the street. They’re the more flexible option and don’t require any attachment to the existing structure. They’re also the better choice where your home’s wall type (double brick, rendered masonry) makes attachment more involved.
What Does a Carport Cost in Newcastle?
Carport pricing in Newcastle varies based on size, roof profile, materials, and whether site prep (slab, footing excavation) is included. The ranges below are a guide — your free quote will be scoped to your specific block and configuration.
| Configuration | Indicative Price Range |
|---|---|
| Single carport, flat roof, steel frame | $6,500 – $10,000 |
| Single carport, gable roof, Colorbond | $9,000 – $14,000 |
| Double carport, flat roof, steel frame | $11,000 – $16,000 |
| Double carport, gable roof, Colorbond | $14,000 – $22,000 |
| Wall-attached lean-to, single | $7,500 – $12,000 |
| Custom or oversize (4WD/van height) | From $15,000 |
Prices above are indicative and exclude CDC certification fees (typically $1,500–$2,500 through a private certifier) and any driveway extension work. We itemise every component in our quotes — no line items hidden in a contingency figure.
Why Newcastle Homeowners Choose Us for Carport Installation
We’ve built carports across Newcastle’s coastal suburbs and outer growth corridors — from single lean-tos in Hamilton to large double freestanding structures in Fletcher and Rutherford. A few things set our builds apart:
Licensed and insured: Every carport we build is completed by licensed builders under the NSW contractor licence framework. You’re protected by statutory warranties and our work is inspectable by your certifier.
Compliance handled for you: We manage the CDC or DA process, coordinate your private certifier, and handle the paperwork so you don’t have to navigate Newcastle City Council or Lake Macquarie Council on your own.
Materials specified for the coast: Everything we specify — from post coatings to roofing profile — is selected to perform in salt air and coastal UV conditions.
Clear quoting. You receive a fully itemised quote with no surprises at invoice. Project timelines are set at the start and communicated throughout the build.
FAQ
Do I need council approval for a carport in Newcastle?
Most residential carports qualify under the NSW Complying Development Certificate (CDC) pathway, which means approval through a private certifier rather than a full DA with Newcastle City Council. Whether CDC applies depends on setbacks, height, and roof area relative to your dwelling. We assess this at the quoting stage and let you know which pathway applies to your block.
How close to the front boundary can a carport be built in Newcastle?
Under CDC, a carport generally can’t be closer to the front boundary than the existing building line of your home, or within 1 metre — whichever is the lesser. This is the most common compliance issue on inner Newcastle blocks where homes sit close to the street. Where a CDC setback can’t be met, a DA pathway may still be viable.
How long does a carport take to build?
Once approvals are in place, most single and double carport builds take 2–4 days on site. The timeline from first quote to build completion — including CDC approval through a private certifier — is typically 4–8 weeks depending on certifier workload and weather
What's the difference between a single and double carport?
A single carport typically spans 3.2–3.6 metres wide and covers one vehicle. A double spans 5.4–6.0 metres and covers two. For Newcastle households with two vehicles, or where one vehicle is an SUV or 4WD, a double is generally the better long-term investment.
Can a carport be attached to my house in Newcastle?
Yes. Wall-attached (lean-to) carports fix to your home’s fascia or wall and are a common solution on narrower suburban blocks. We waterproof and flash all wall penetrations correctly. Attachment feasibility depends on your wall type — double brick, timber, or rendered masonry — which we assess during the site measure.
What roofing material is best for a carport in Newcastle?
Colorbond steel roofing is the standard recommendation for Newcastle’s coastal conditions. It’s corrosion-resistant, carries a manufacturer’s warranty, and comes in a full colour range to match your existing roof. Polycarbonate roofing is an option where natural light is a priority, though it degrades faster in UV-intense coastal environments.
Get a Free Carport Quote in Newcastle
Tell us your suburb, your configuration, and whether you need a single or double — we’ll come out, measure the site, and have a fully itemised quote back to you within a few business days.
